Optical characteristic

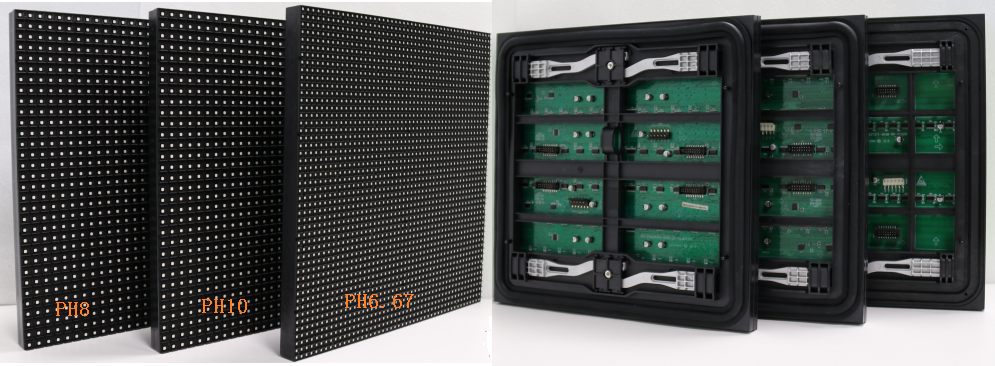

Type
PH4
PH5.33
PH6.67
PH8
PH10
Pixel pitch（mm）
4
5.33
6.67
8
10
Pixel density (Dots/㎡)
62,500
35,156
22,500
15,625
10,000
Pixel congriration
1R1G1B
Module dots (W*H)
80*80dots
60*60dots
48*48dots
40*40dots
32*32dots
Driving mode
1/10 Scan
1/7 & 1/8 Scan
1/6 Scan
1/5 Scan
1/2 Scan
Brightness(cd/㎡)
≥5500
≥5500
≥5500
≥5500
≥5800
Gray level (bit)
16 bit
Visual refresh (Hz)
≥3840
Horizontal visual Angle(Deg)
140（±10）
Vertical viewing Angle(Deg)
120（±10）
Physical characteristic

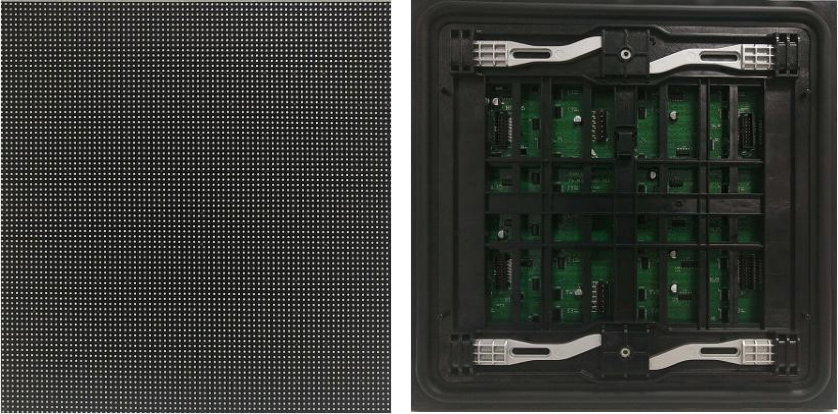

Module size (L*W)
320*320mm
Module weight (g)
1250g
1200g
1220g
1200g
1195g
Module mask flatness
≤0.2mm
Input voltage (DC)
5V
Module maximum current (amperes)
≤16A
≤15A
14.3A
Module Maximum power consumption (w)
≤80
≤75
≤60
Maximum power consumption (w/㎡)
≤800
≤750
≤600

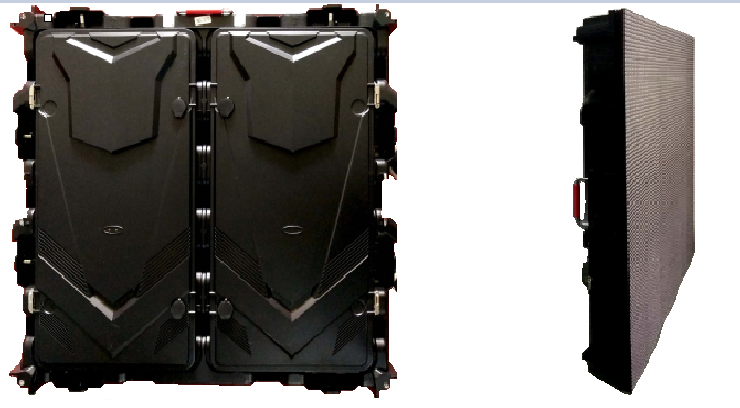

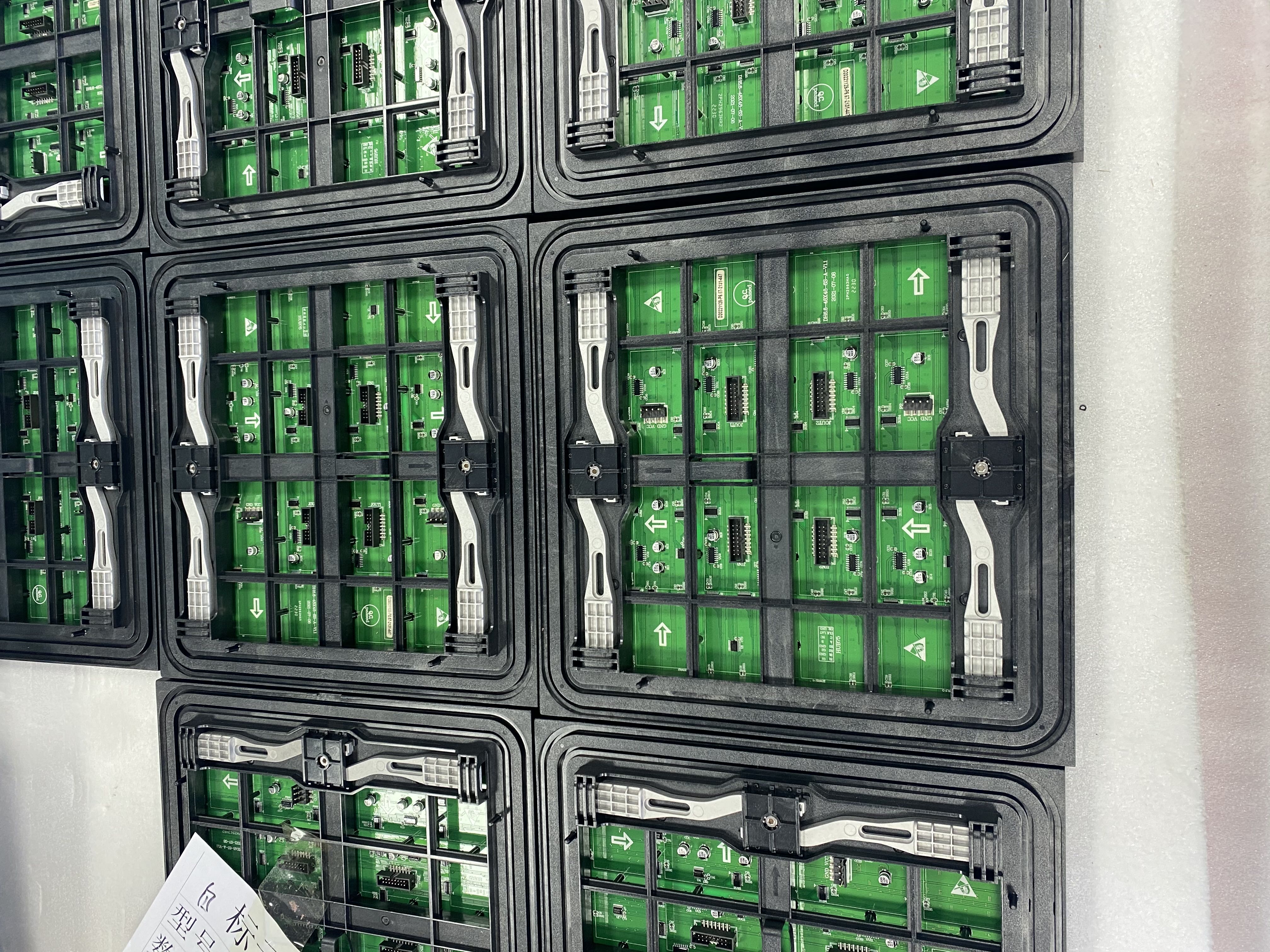

Module installation structure
Buckle type front mounting
Mean time to failure
≥10,000 hours
Service life
≥100,000 hours
Working enviroment
Use environment
Outdoor
Operating temperature range (℃)
-10℃-60℃
Operating humidity range (RH)
30%-85%
Storage temperature range (℃)
0℃-40℃
Storage humidity range (RH)
35%-60%
Protection class
Front IP65
Feature

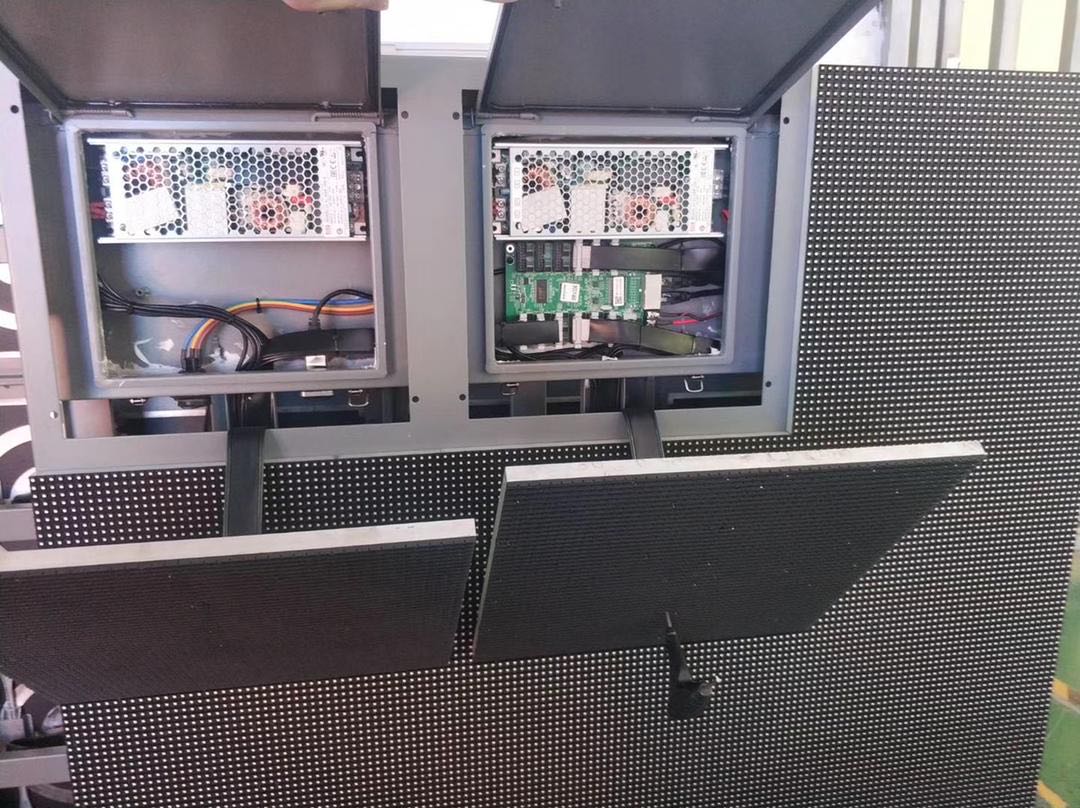

1)Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
2)Adopt top high brightness with low power consumption LED lamp, energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection. Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
3)Free back service path for all kinds of installation surroundings. Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.
4)It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can be shaped into column to wrap pillars for animation decoration.
FAQ
1sqm.
2.How about payment?
T/T , L/C, Western union,Paypal,Cash can optional.
3.How about the lead time?
LED Module:1-7working days
LED Display: 3-20working days
4. How about the warranty time?
Our standard is 2years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5years warranty.
5. Which shipping port you use?
Our standard is Shenzhen, but Guangzhou or Hongkong.
We also can accept your appoint port.
6. How to do the shipping?
You can use our shipping agent who we have cooperate more than 4years
Or you can use your shipping agent.
