JC totem-outdoor Advantages :
Stable all in one solution ;
Super durable design ;
High grade protection with tempered glass ;
Remote control and monitoring system (optioanl ) ;
Embedded with video monitor and ammeter ;
Access for WiFi / 3G /4G wireless and wired network ;
Centralized cluster network and remote control system to monitor and manage the status of LED screen
sound track output
Offline Message
|
JC Poster-Outdoor |
JC Poster-O2.94 | JC Poster-O3.84 | JC Poster-O4.54 |
|---|---|---|---|
| Pixel pitch(mm) | 2.94 | 3.84 | 4.545 |
| Operation System | Windows | Windows | Windows |
| Screen visual Size | 1000x2000 | 1000x2000 | 1000x2000 |
| LED Type | SMD1921 | SMD 1921 | SMD1921 |
| Display Size(W x H x D)mm | 1100×2500x120 | 1100×2500x120 | 1100×2500x120 |
| Display resolution(W x H) | 340*680 | 260*520 | 220*440 |
| Module Size(W x H x D)mm | 200x200 | 200x200 | 200x200 |
| Module resolution(W x H) | 68x68 | 52x52 | 44x44 |
| Material | steel | steel | steel |
| Diver Mode(Scan) | 1/7 | 1/13 | 1/11 |
| Brightness(cd/m2) | >3500 | >3500 | >3500 |
| Grey Scale | 16 | 16 | 16 |
| Refresh Rate(Hz) | 1920 | 1920 | 1920 |
| Weight(Kg/set) | 190 | 190 | 190 |
| Max Power Consumption(W/display) | 1860 | 1860 | 1860 |
| Average Power Consumption(W/display) | 560 | 560 | 560 |
| View Angle(H°/V°) | 120/120 | 120/120 | 120/120 |
| Mini View Distance(m) | 2 | 3 | 4 |
| Remote power device | Remote power control | ||
| control model | Wireless control (4G,WIFI,ADSL etc) | ||
| Operating Use Temperature(℃) | -10℃~60℃ | ||
| Storage Use Temperature(℃) | -20℃~60℃ | ||
| Input Voltage(V) | 100~240V | ||
| Input Power Frequency(Hz) | 50Hz~60Hz | ||
| Failure Rate | ＜1/100,1000 | ||
| Life Time(hrs) | 100,000 | ||
| IP Level(front/rear) | IP65 | ||
Product Feature
1. Intelligent control:
2.With the LAN, WIFI, 3G, Intelligent management core modules inside. The advertisement show can be changeable;
3. Time and labor-saving: Once it is successfully installed, Its advertising content can be changed at any time, Unlike those traditional static billboards which need to be disassembled frequently. It is of high time and labor saving;
high IP level:
4. With front / back IP level 65 / 54. screen can be used outdoor even against terrible weather

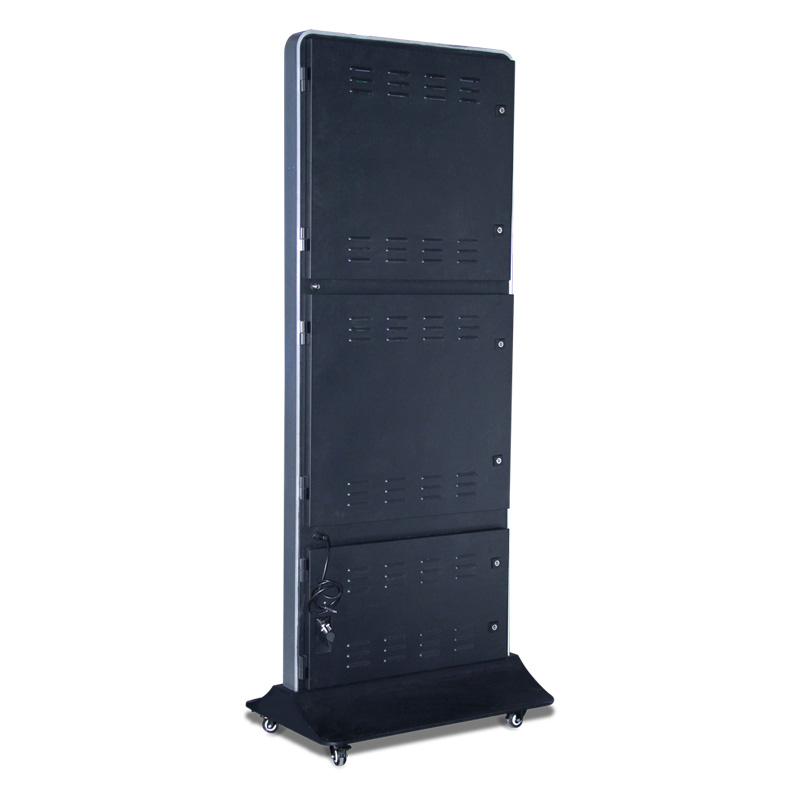

5. Easy maintenance: Side-Open and back-open maintenance render it more optional installation positions.
