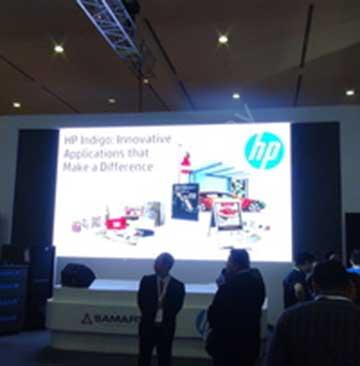

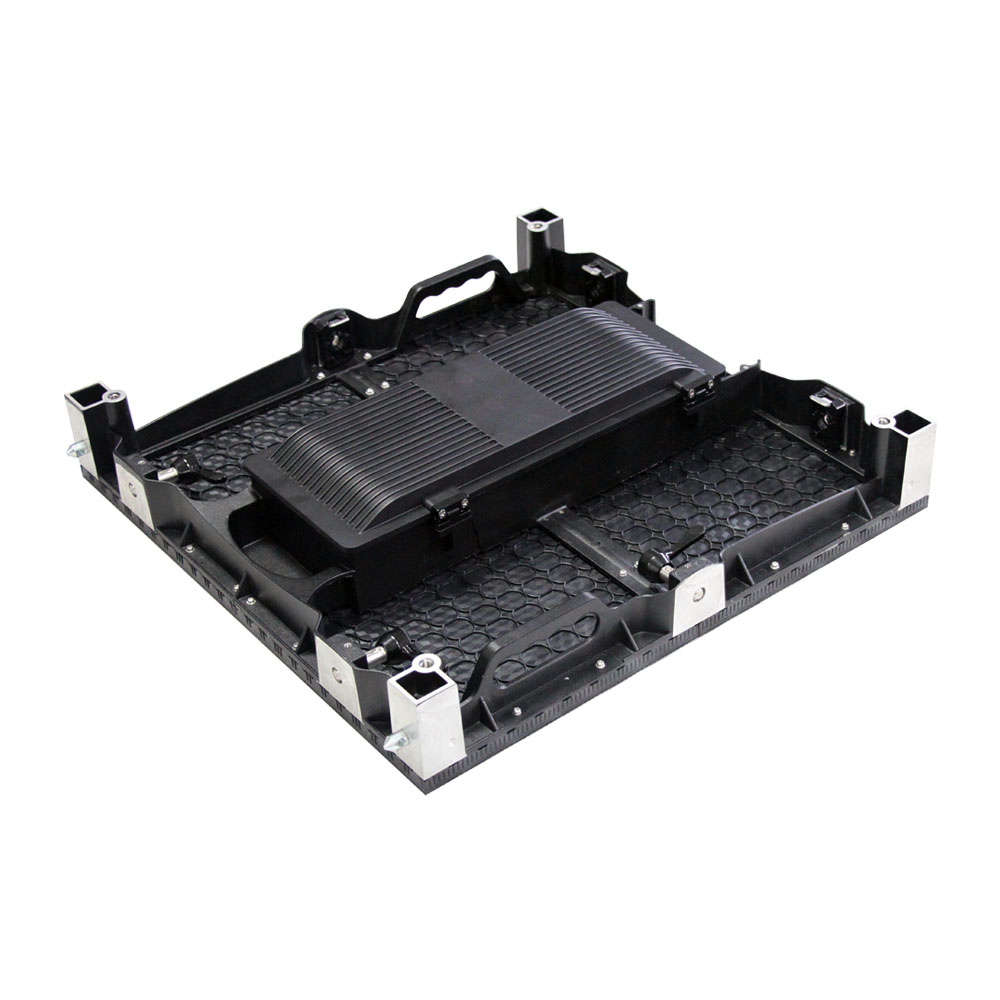

Indoor rental

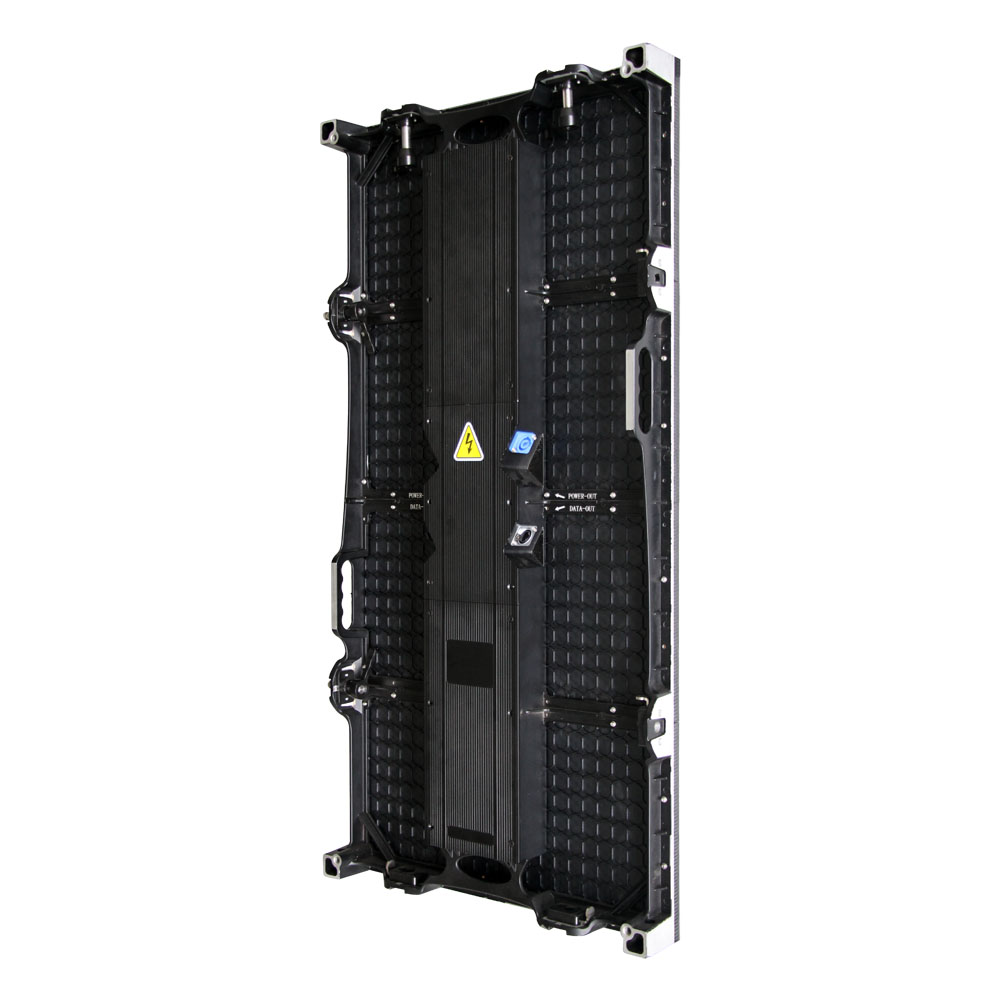

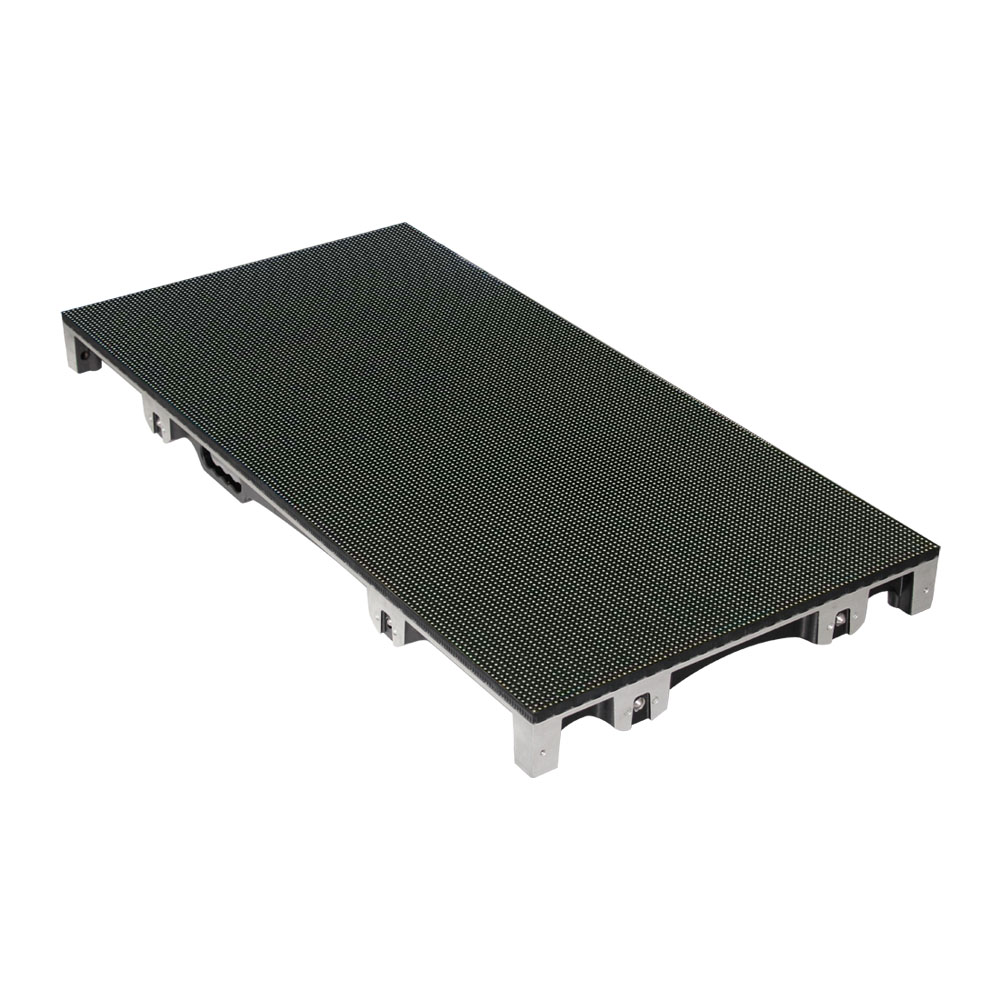

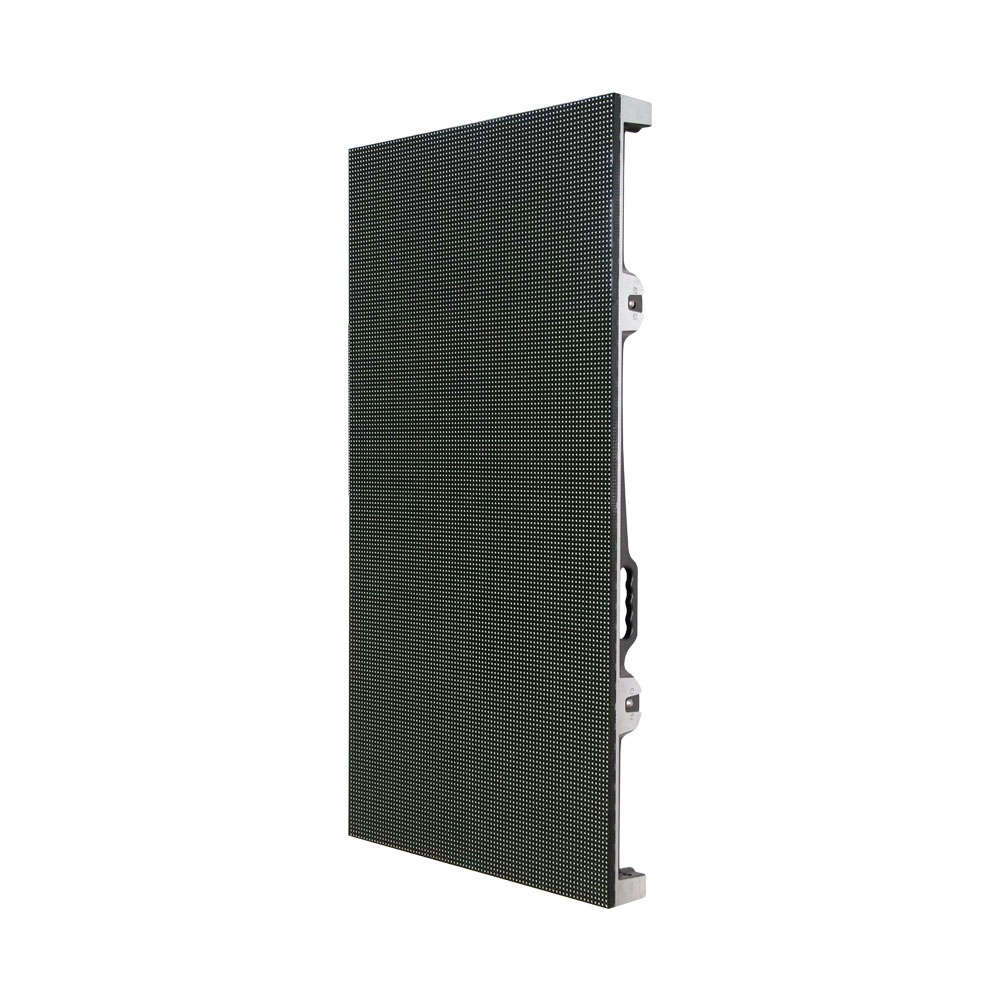

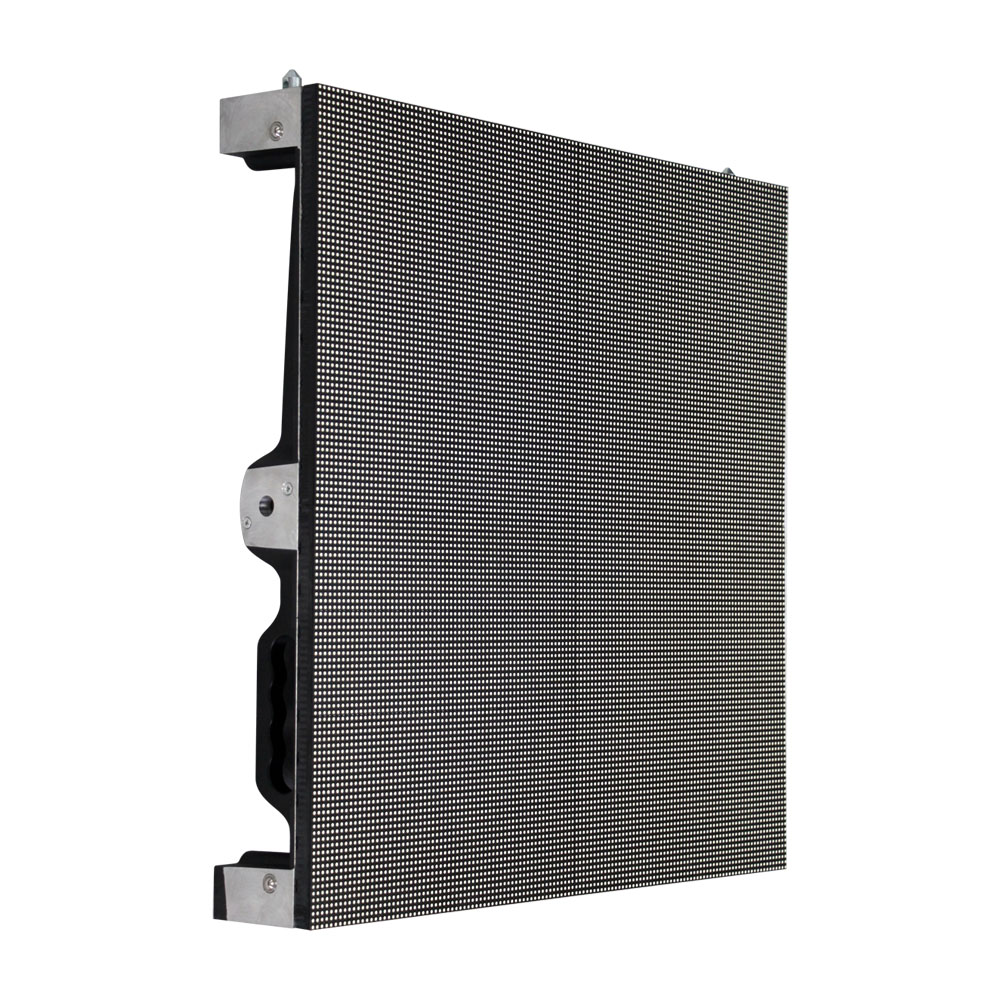

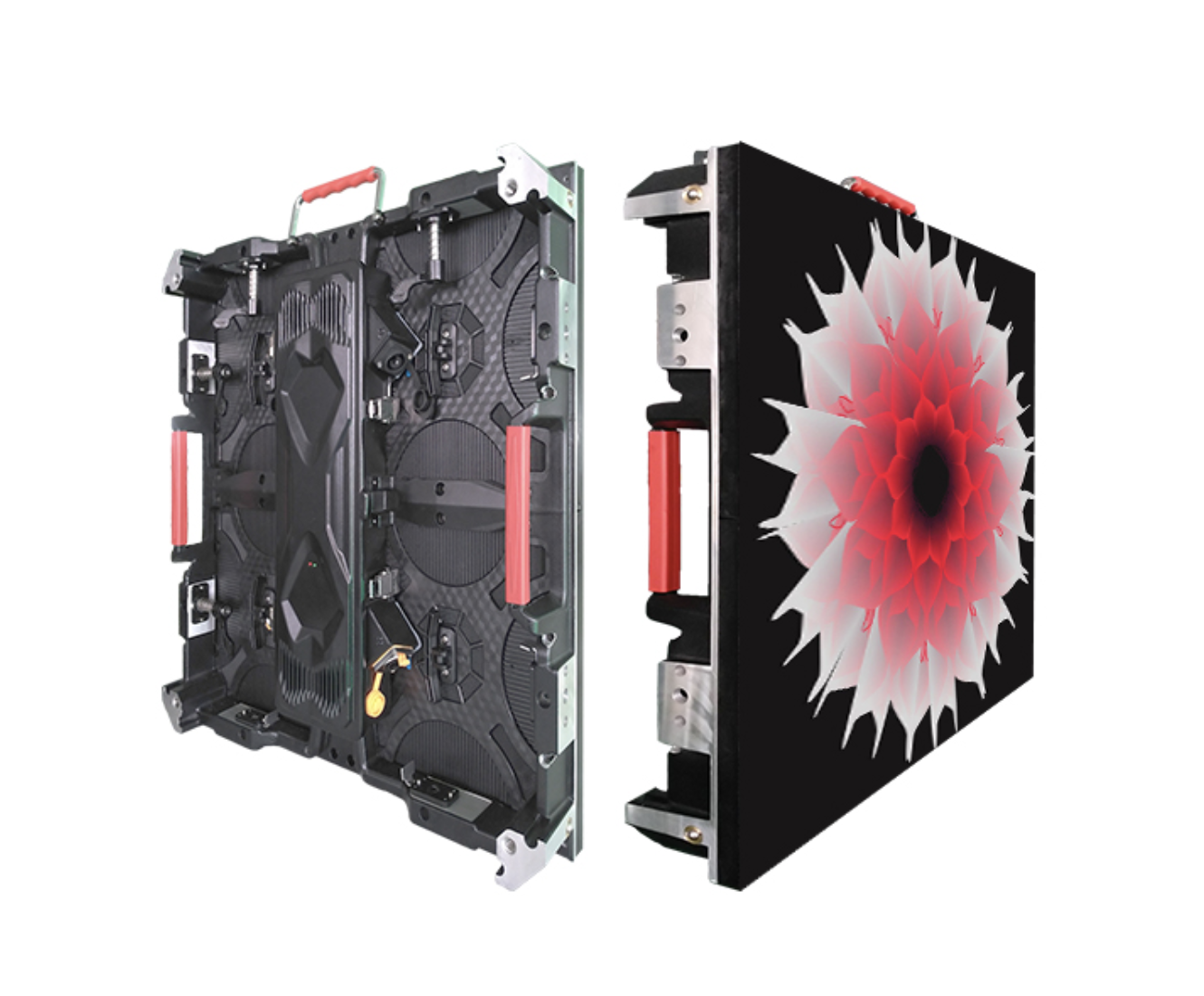

Light weight and ultrathin body.

Tool-free assembly and disassembly.

Seamless installation, error<0.1mm.

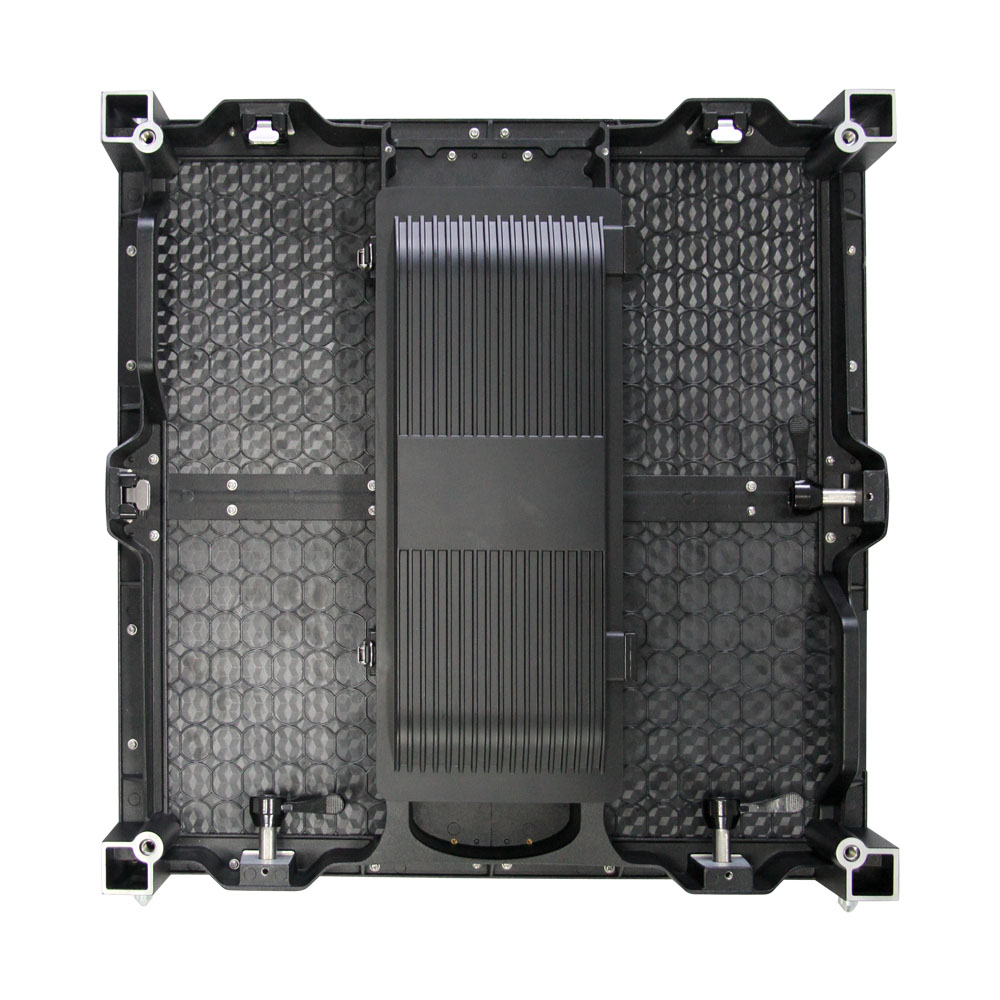

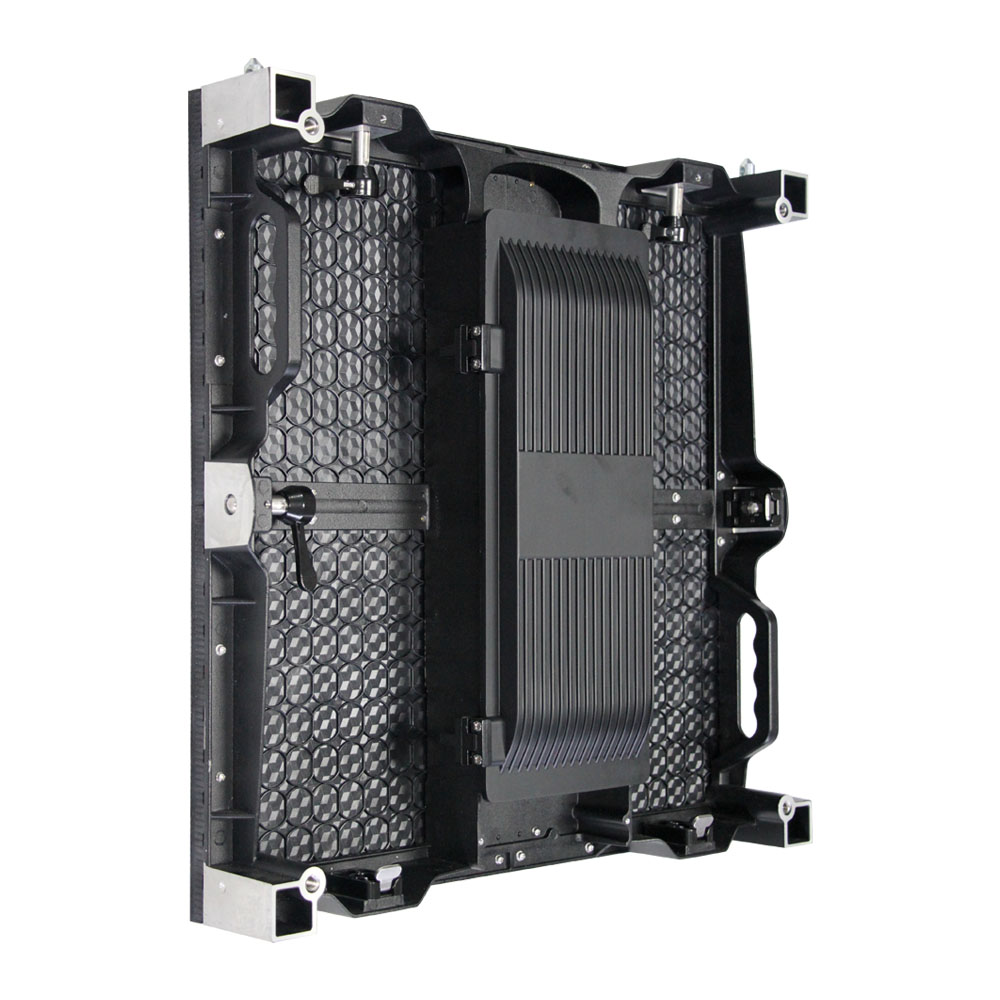

Good heat dissipation, without flat cable design.

Curve or round shape it’s a option

Specifications

JCstage	JCstage-In1.95	JCstage-In2.6	JCstage-In2.84	JCstage-In2.97	JCstage-In3.91	JCstage-In4.81
Pixel pitch(mm)	1.95	2.604	2.84	2.976	3.91	4.81
Pixel Density(dot/m2)	262144	147456	123904	112896	65746	43264
LED Type	SMD 1515 Black	SMD1515 Black	SMD1515/2121 Black	SMD 2121 Black	SMD 2121 Black	SMD 2121Black
Module Size(W x H x D)mm	250 x 250	250 x 250	250 x 250	250 x 250	250 x 250	250 x 250
Module resolution(W x H)	128 x 128	96 x 96	88 x 88	84 x 84	64 x 64	52 x 52
Module Weight(Kg)	1.3	1.3	1.3	1.3	1.3	1.3
Power Consumption per Module(w)	50	50	50	50	50	50
Diver Mode(Scan)	1/32	1/32	1/22	1/28	1/16	1/13
Brightness(cd/m2)	≥1,000	≥1,000	≥1,000	≥1,000	≥1,500	≥1,500
Grey Scale(bits)	16	16	16	16	16	16
Refresh Rate(Hz)	≥1,920	≥1,920	≥1,920	≥1,920	≥1,920	≥1,920
Cabinet Size(W x H x D)mm	500 x 500 x 85	500 x 500 x 85	500 x 500 x 85	500 x 500 x 85	500 x 500 x 85	500 x 500 x 85
Cabinet Weight(Kg/Cabinet)	7.5	7.5	7.5	7.5	7.5	7.5
Max Power Consumption(W/m2)	800	800	800	800	800	800
Average Power Consumption(W/m2)	300	300	300	300	300	300
View Angle(H°/V°)	150°/120°	150°/120°	150°/120°	150°/120°	150°/120°	150°/120°
Mini View Distance(m)	1	2	2	3	4	5
Operating Use Temperature(℃)	-10℃~40℃
Storage Use Temperature(℃)	-20℃~50℃
Input Voltage(V)	100~240V
Input Power Frequency(Hz)	50Hz~60Hz
Failure Rate	＜1/100,1000
Signal Input Format	SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc.
Life Time(hrs)	100000
IP Level(front/rear)	IP31/IP31
